BOXMAT HD

Short and medium run box maker - to use with High Density or Regular Corrugated Sheets or Fanfold Board

SLITTING

SLOTTING

CUTTING

TRIMMING

CREASING

SCORING

DIE CUTTING

PRINTING

GLUING

In ONE compact machine!

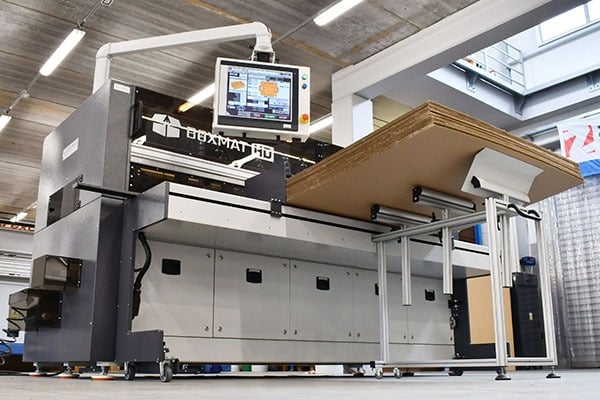

The most versatile of BOXMAT series model with High Density (Heavy Duty) corrugated board capabilities. Die Cutting built-in, Gluing System available

Detachable cardboard feeders. The machine can be fully configurable to be used with manual feed, printer or fully automatic feed

DOWNLOAD CATALOGUE9 MB

BOXMAT HD - The Perfect Boxmaking Machine!

New features:

Features:

40+ preinstalled FEFCO styles, 100+ available box styles
One pass operation to make a perfect box
Single, Double wall and Heavy Duty board
Sheets and Fanfold use
Die Cutting built-in
Switchover time – less than 30 seconds
Fully automatic servo-drive setup
Counter-knife and counter scoring/creasing system
Large 19” touch screen HMI

Integrated Inteligo System:

JQS Job Queue System production scheduling
Box Design WIZARD
MRP/ERP manufacturing integration
Barcode reader
Optional 3D product scanning
Cut/Score Allowances correction and editing

More information

More information

Layout:

No LONG TERM corrugated board contracts!

With Boxmat machines, you have a freedom to choose your own
corrugated supplier and make your own BOXES ON DEMAND

Features:

Fully programmable interface for box creation in any style and size
Detachable precision cardboard feeder. The machine can be fully configurable to be used with manual feed, printer or fully automatic feed
The new design of beams provides much less wear of the slotting knives
Double die cutting system with independent drives and die cutting units 210 x 130 mm (8.25 x 5.1”) each. It enables cutting out handles, revisions or angular cuts in corrugated box panels
Upgraded design of slotting knives drive provides much less wear
Reinforced chassis construction assures less vibrations during production process
Additional shaft for feeding the corrugated board
Independent drive for each tool nest provides very fast position setup
Each tool nest can handle either scoring/creasing wheels or knives
Synchronized counter-crease and counter-knife system
Intuitive software with APC capabilities and remote control
Ability to set the tools in-line, one-after-another e.g. for double creasing of heavy boards
Built-in VPN secure connection for HMI allowing remote calibration and updates

Sheets or fanfold:

Available boxes:

Highlights:

Optional LWF Feeder:

LWF feeder provides automatic board pick-up from the stack and feeding it to the machine using vacuum suction cups.
Feeder automatically lift the stack to the picking height using a scissor lift.
Distance between suction cups is adjusted manually according to the width of the format.
Integrated with the Boxmat series machines control system ensures smooth feeding of the boards into machine work area.
Supported height of the stack: 900mm including pallet
Maximum board size:
1500 mm (~59") width x 2000 mm (~79”) length
Minimum board size:
in accordance with the specifications of the machine with which the feeder will cooperate

Technical Specification:


Cardboard used:	Single and double wall B, C, EB, BC
Types of boxes:	Preinstalled ~40 FEFCO styles + Box Wizard
Power supply:	3 x 380/415/480 V
Monimum board size:	250 mm (10″) width x 750 mm (30″ length)
Maximum board size:	2400 mm (94″) width x 9999 mm (394″) length
Min./max. distance between slotting knives:	70 – 2000 mm (2¾ – 79”) (with 200 mm knives)
Slot width:	7-8 mm
Sectional slotting knives:	100 mm (4”) each
Standard slotting knives length:	500 mm (20”) each side
Min./max. slotting knives length:	200 – 700 mm (8 – 27 1/2”)
Glue flap:	from 5 mm (3/16”)
Footprint (L x W x H):	3600 x 1900 x 1750 mm (142 x 75 x 69”)
Weight:	~3800 kg (7900 lbs)
